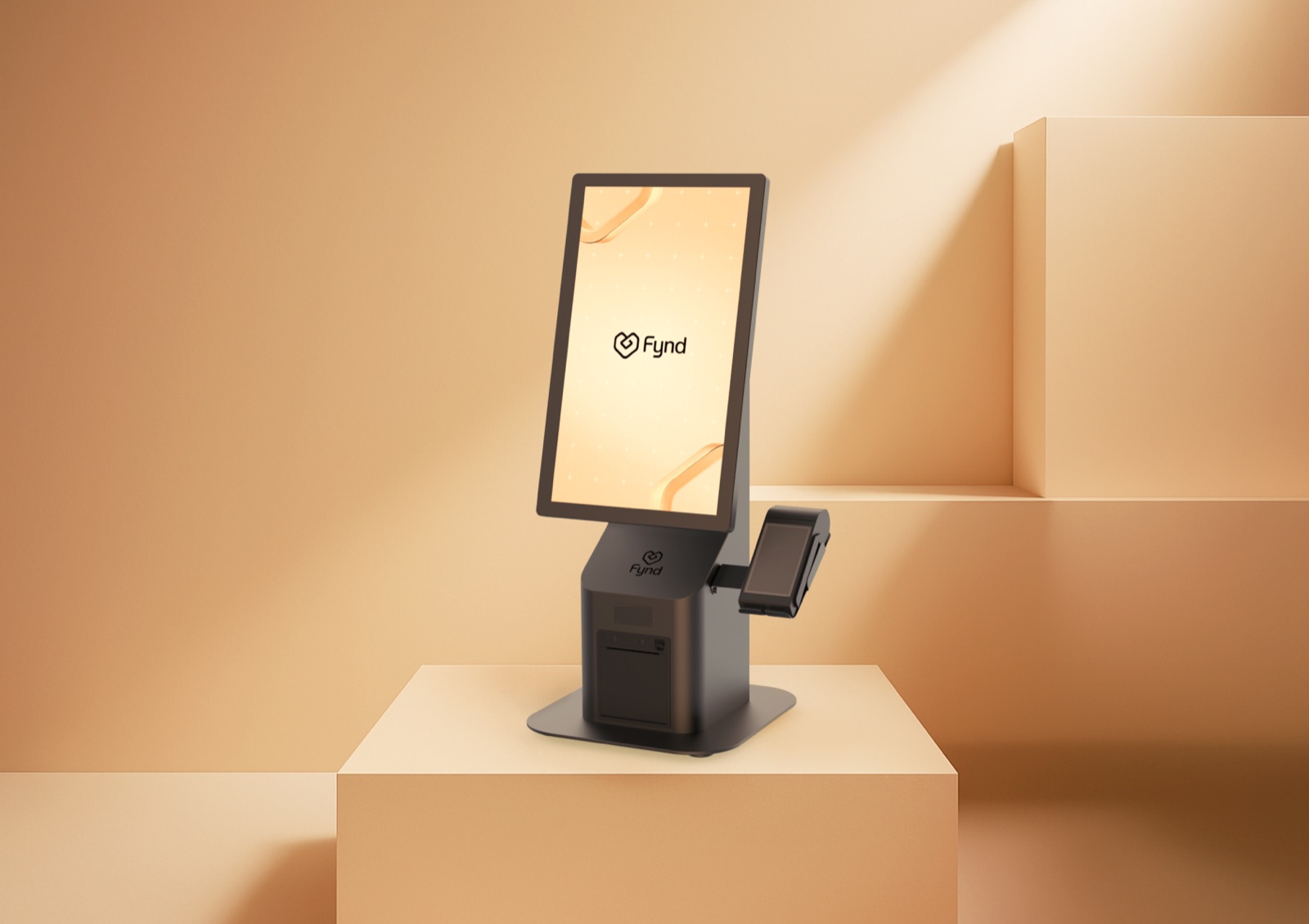

Self-checkout kiosk hardware for retail. Pilot live at Malad. 3× faster than manned POS. Built on Fynd Swift Module for OTA fleet management.
Kio is hardware (the kiosk), software (Swift Module for OTA), and a live lab (SnacAdda). Each runs today; all three feed the Fashion Factory rollout.
| Module | Status | Anchor outcome |
|---|---|---|
| Kio Series hardware | Live | FKAP1 + FKAP2 platforms · 4 model variants · 21.5″ FHD touch · 3× faster checkout vs manned POS |
| Fynd Swift Module | Live | OTA fleet management · firmware push · remote diagnostics across deployed fleet |
| SnacAdda · internal lab | Live | WeWork Andheri Mumbai · 50+ items/min · FSM diagnostics + OTA validated · live shopping rig |

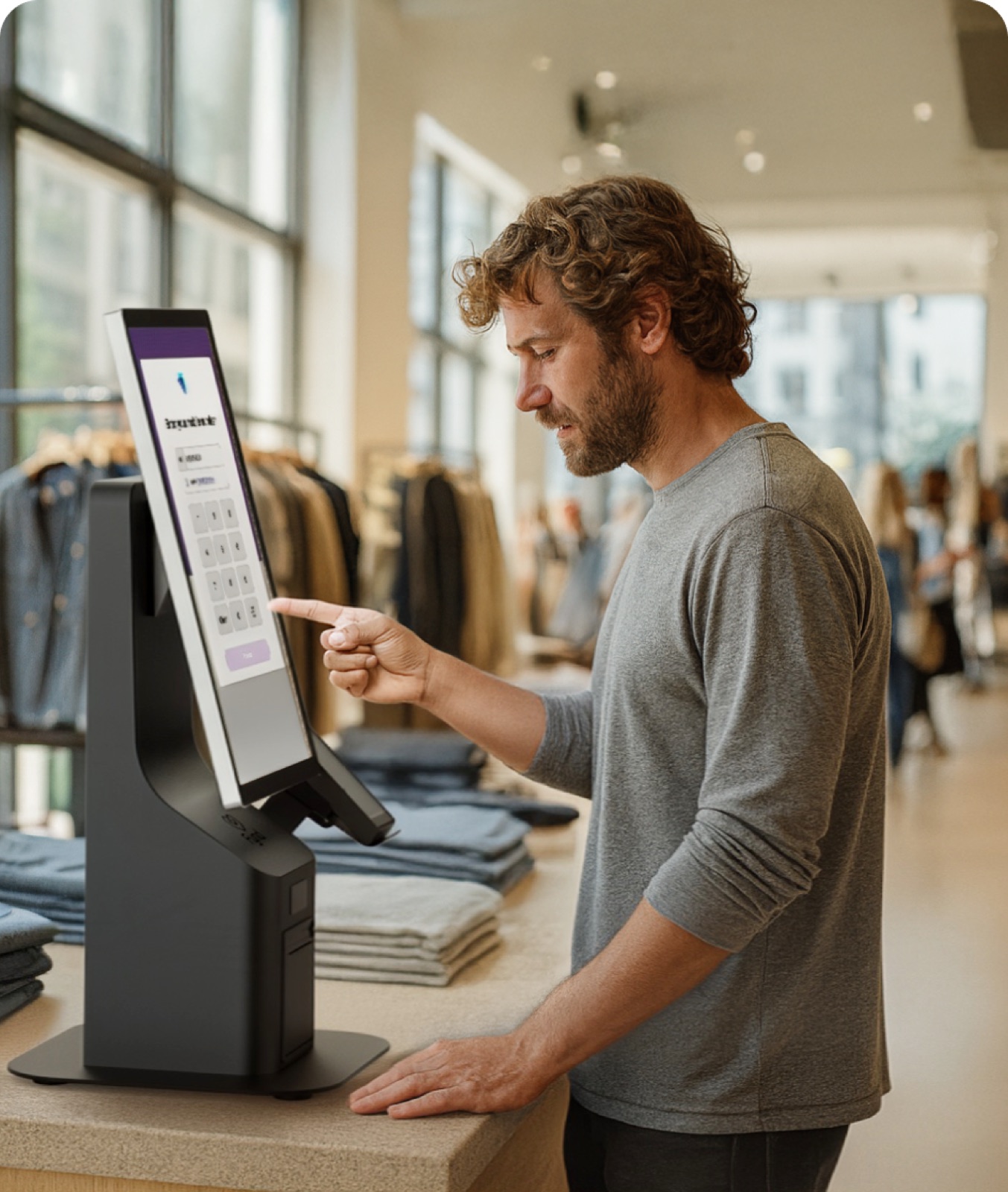

Fashion & Apparel · Beauty & Cosmetics · Supermarkets & Grocery. Modular hardware adapts to store layout. Fashion deployments pair with the RFID bin variant + hard-tag remover for bulk drop-off checkout.

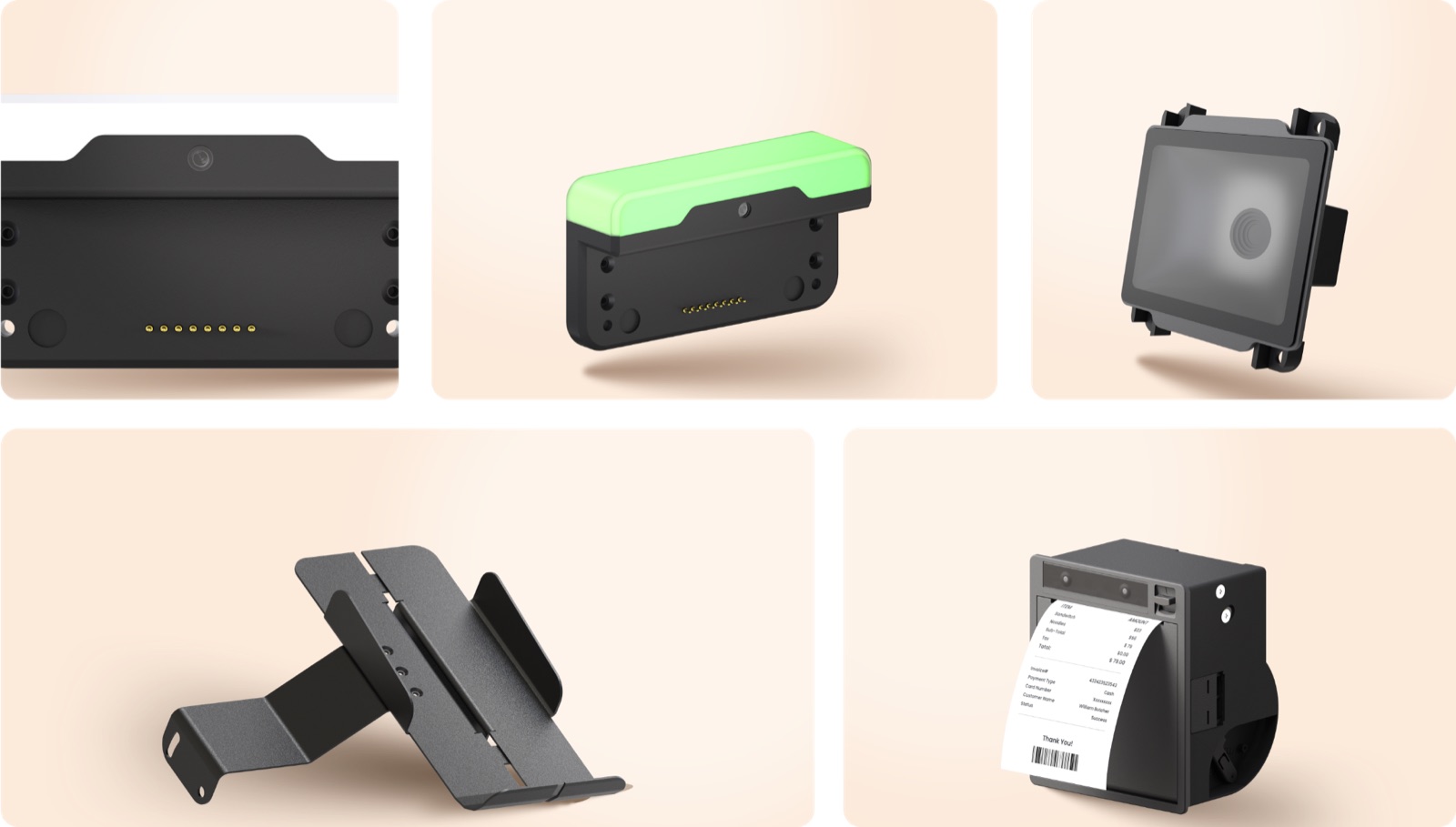

Camera module · multi-colour status LED · 2D CMOS barcode scanner · POS-terminal mount · 80 mm thermal printer with auto-cutter. Per-store configuration without redesigning the chassis.
Cortex-A55 / A76 cores · NPU 1-6 TOPS · Android 13/14 + Linux. On-device barcode + RFID processing.
Capacitive touch · 1920×1080 IPS · 500 nits · 178°/178° viewing · 20° tilt adjustable.
2D CMOS barcode (EAN/UPC/Code128/PDF417/QR) · 80 mm thermal printer · status LED · camera · POS mount · RFID hard-tag remover + pin collector + 40-100L bin.
StoreOS sync (real inventory + pricing) · Fynd Swift Module for OTA firmware + remote diagnostics · FSM (Field Service Management) for service cycles.
Same compute, same software, four physical formats. Convert between tabletop, wall, or standing in minutes via the modular mounting system. Bin variant pairs with RFID accessories for fashion bulk-drop checkout.

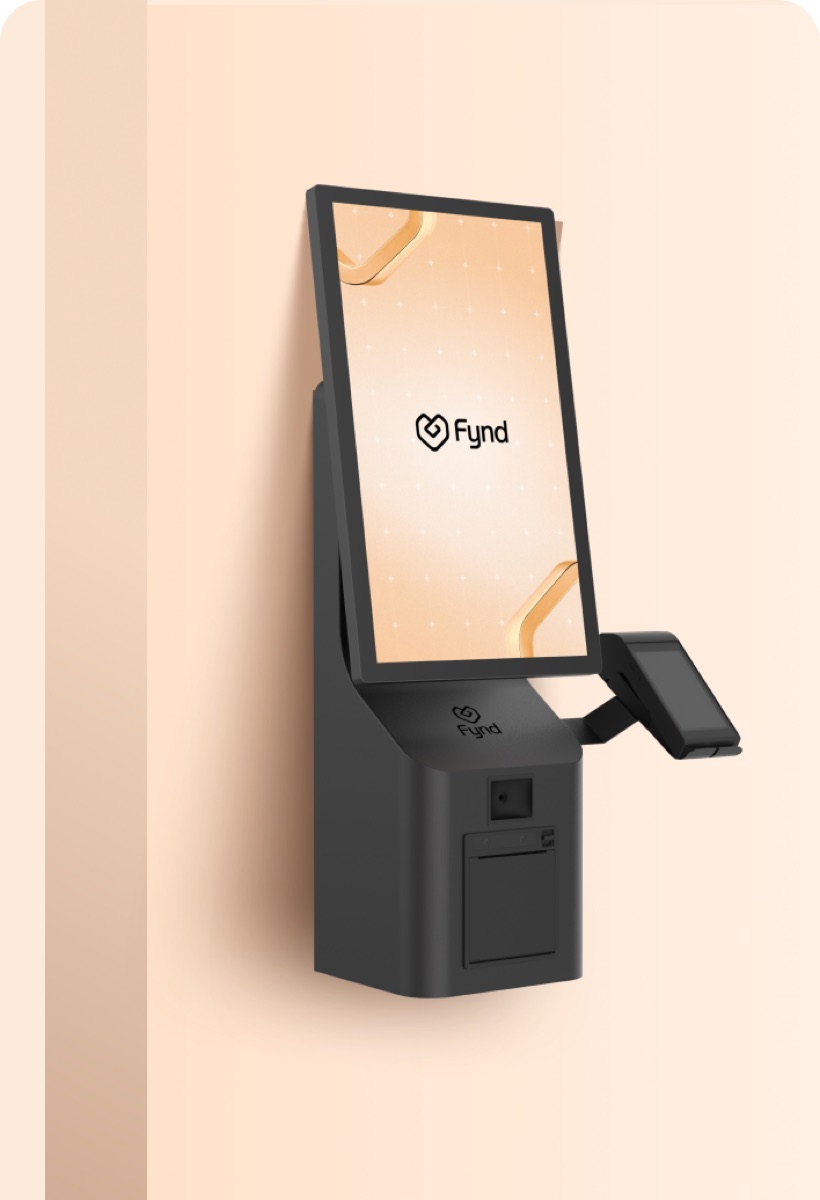

Wall-fixed · space-efficient · queue-busting on shop floor.

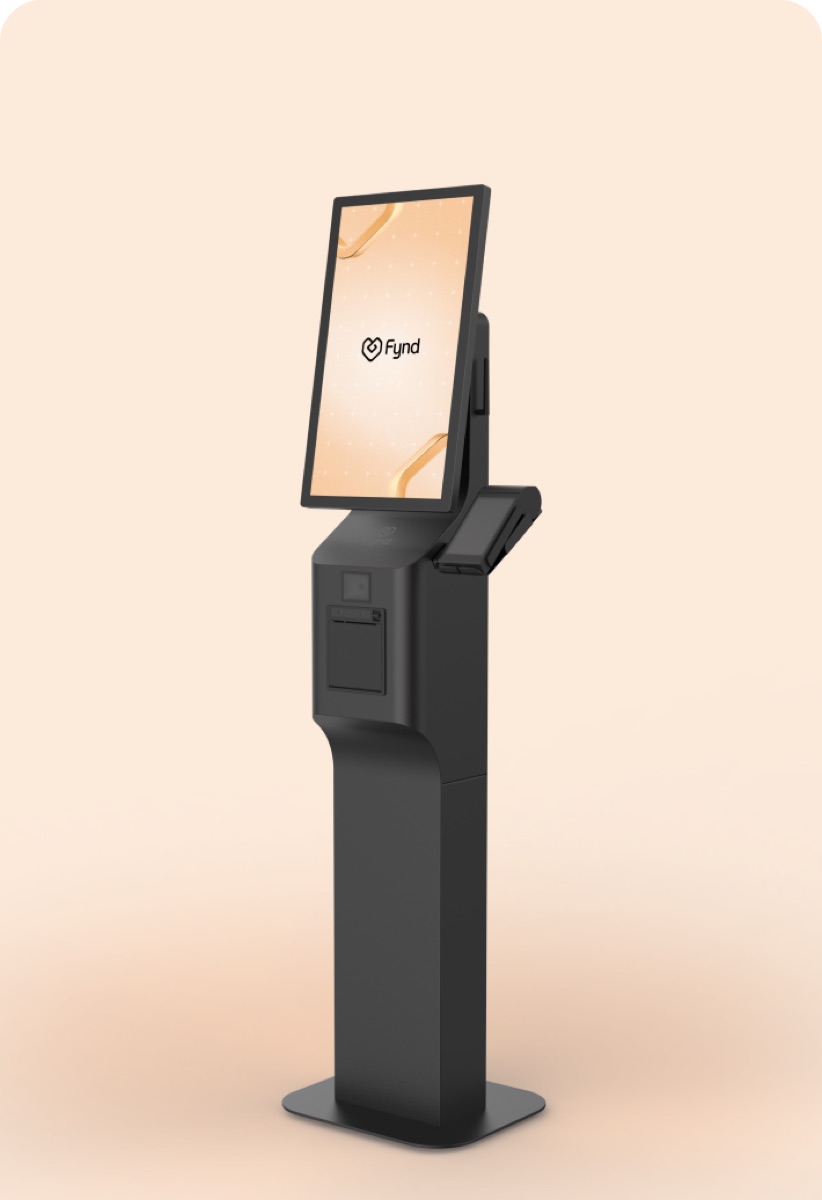

Floor-standing · printer + scanner integrated in pedestal.

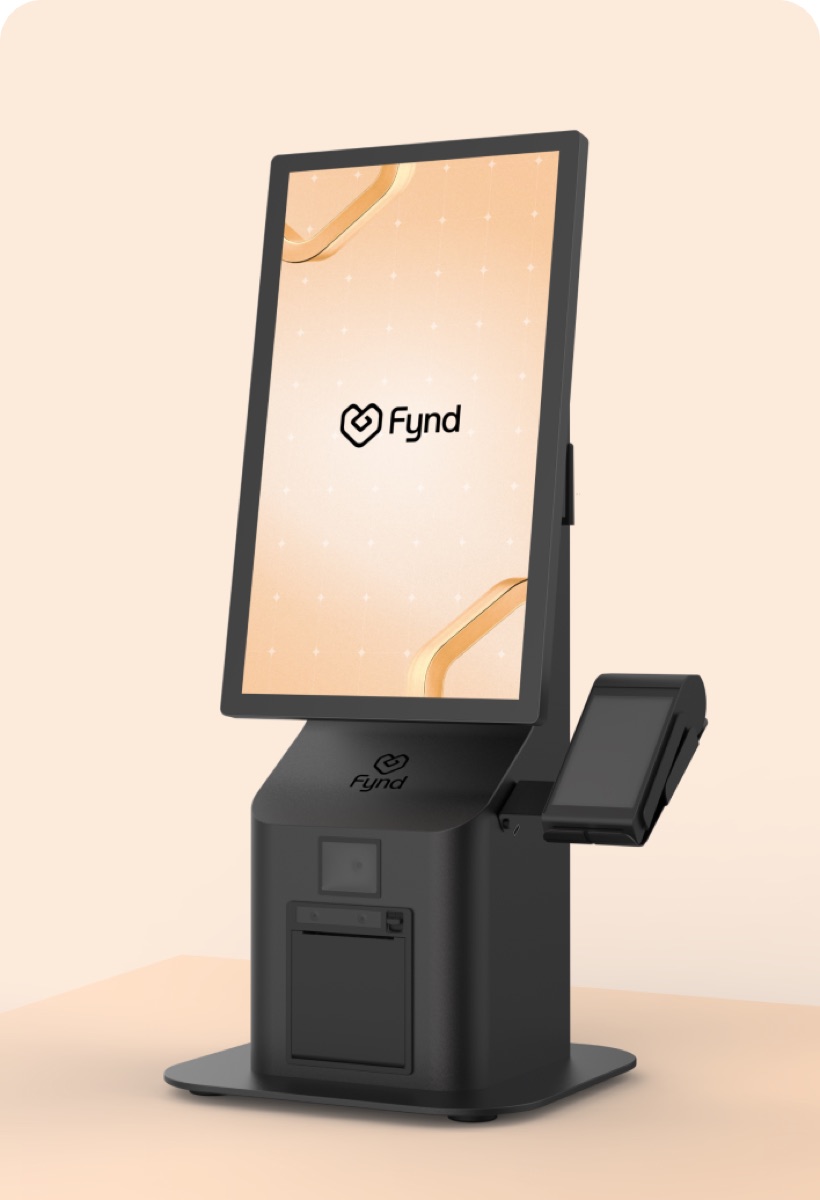

Counter-mounted · 20° tilt-adjustable · compact.

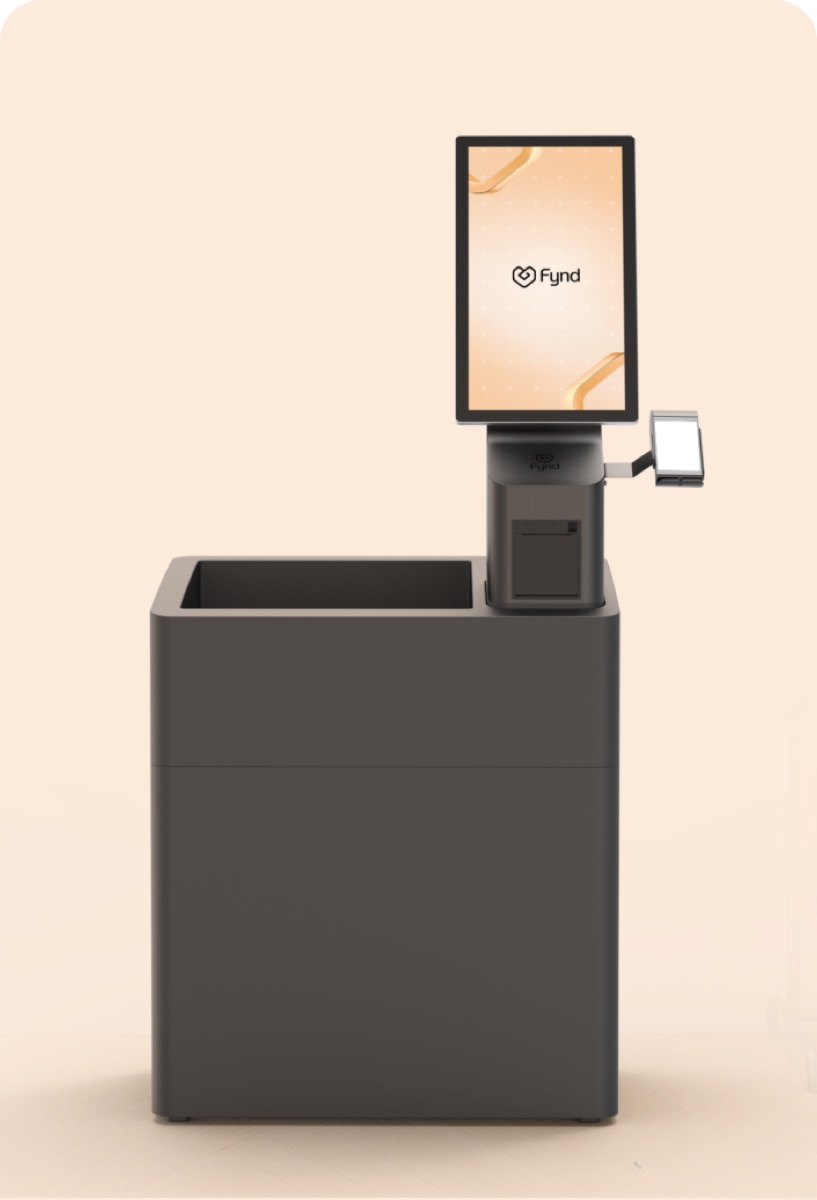

Volumetric RFID bin · 40-100L · fashion bulk drop-off.
Threads in active execution as of 01 - May - 2026. Each carries a Building pill — work is well-defined, owner is named, gating step is in motion.
168 production units locked for Reliance Retail Fashion Factory format. Hardware build + Swift Module preconfiguration in parallel; staged store-by-store install across FY26-27.
40-100L volumetric RFID bin · paired with EAS hard-tag remover and pin collector. Customer drops a basket of tagged garments; bin reads the lot, kiosk surfaces totals for pay-and-go. Anchor format: Fashion & Apparel.
Camera module slotting into Fashion & Apparel deployments. Pairs with Fynd Horizon for fit preview at the same surface where the customer pays. Adds Horizon as the upstream try-on surface.
Swift Module emits diagnostics; FSM (Field Service Management) routes service tickets before downtime. Validated in SnacAdda; hardening for Fashion Factory scale. Diagnostic uptime is a tracked metric.

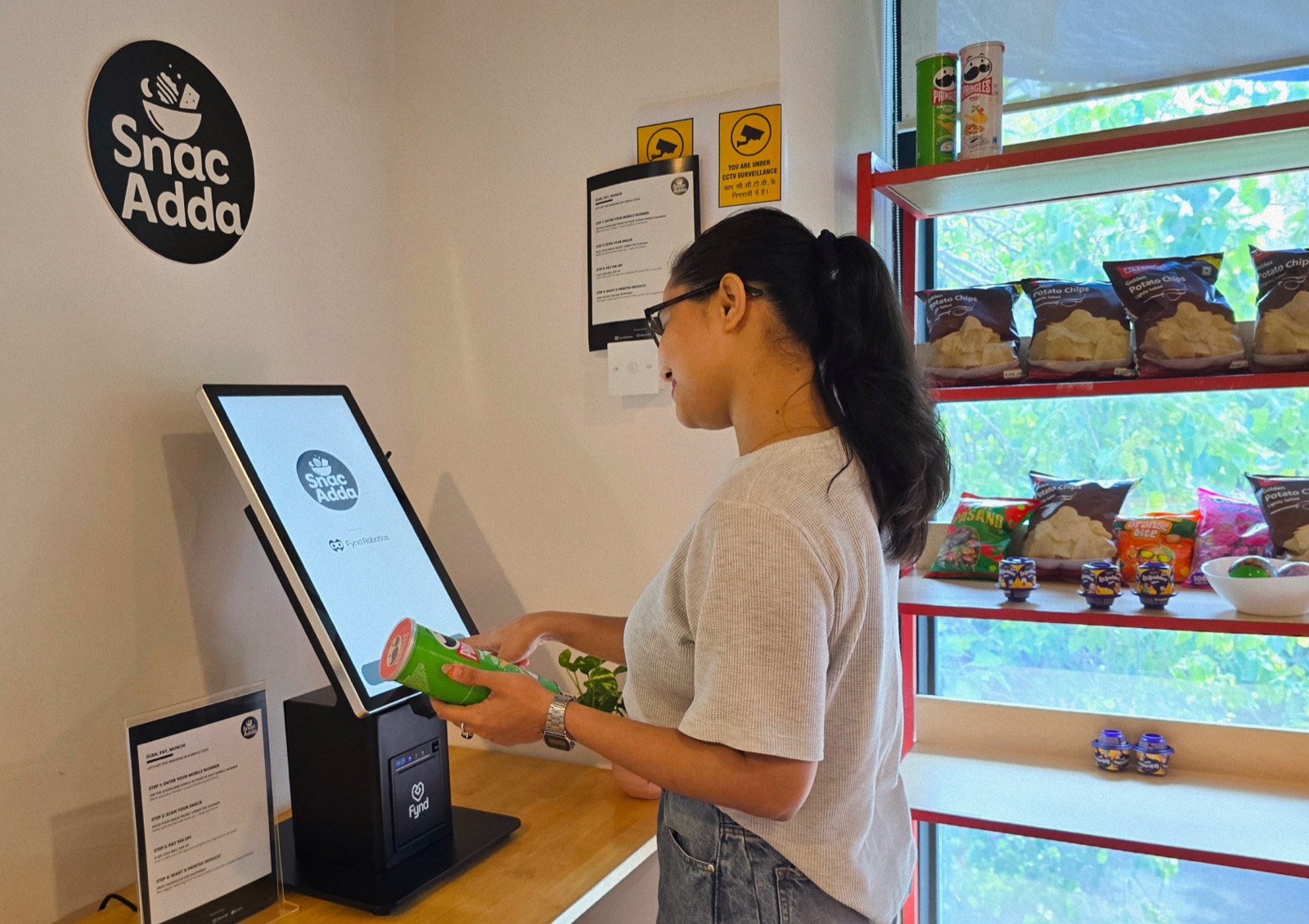

SnacAdda is a full-stack self-checkout kiosk Fynd deployed in its own WeWork Andheri office. Stand-mounted Kio (SPG Series) with StoreOS + FSM integration. Office pantries lack automated checkout — Fynd built one to refine the technology in live use before customer-site deployment.
Stand-mounted Kio (SPG Series) · StoreOS + FSM integration. Real shopping experience: barcode scan → payment → receipt print → real inventory sync.
Verbatim from the Kio Series datasheet. Two compute platforms, one display platform, one peripherals stack.
| Component | FKAP1 | FKAP2 |
|---|---|---|
| CPU | Quad-core 64-bit Cortex-A55 @ 2.0 GHz · NPU 1 TOPS | Octa-core (4× Cortex-A76 @ 2.4 GHz + 4× Cortex-A55 @ 1.8 GHz) · NPU 6 TOPS |
| GPU | Mali-G52 2EE | Mali-G610 MC4 |
| RAM | 8 GB LPDDR4 | 8 GB LPDDR4/4x |
| Storage | 64 GB eMMC | 64 / 128 GB eMMC |
| OS | Android 14 · Linux | Android 13 · Linux |
| Connectivity | 1× 1000M Ethernet · 2.4 GHz Wi-Fi · BT 5.2 · mini-PCIe (4G) | 1× 1000M + 1× 100M Ethernet · 5G via M.2 · 2.4 GHz Wi-Fi · BT |
| Spec | Value |
|---|---|
| Display | 21.5″ diagonal · capacitive touch |
| Resolution | 1920 × 1080 (FHD) |
| Display type | IPS LCD |
| Brightness | 500 nits |
| Contrast | 1000 : 1 |
| Tilt | 20° adjustable |
| Viewing angle | 178° / 178° |
| Power input | 100 - 240V AC · 50/60 Hz |
| Power draw | 50 W |
| Operating temp | 10 °C - 65 °C |
| Component | Spec |
|---|---|
| Barcode scanner | 2D CMOS imager · 60° FOV · 250 mm ±10% working range · EAN/UPC/Code128/PDF417/DataMatrix/QR |
| Status LED | Multi-colour (Red · Green · Blue · Yellow) |
| Printer | 80 mm thermal · auto-cutter · 1.5-2.0 m print length |
| RFID accessories | EAS hard-tag remover · pin collector bucket · 40-100L volumetric bin |
| Camera module | Optional · for Virtual Try-On + on-kiosk preview |
| POS terminal mount | Integrated payment-terminal docking |
